HGX B300 and HGX B200 choices focus on scale, efficiency and readiness for AI workloads. As teams deploy LLMs, RAG and reasoning pipelines, peak FLOPS aren’t the only concern. Issues like OOM (Out-of-Memory) events, context latency spikes and scaling efficiency also matter.
Key factors include HBM memory limits, memory bandwidth, NVLink and NVSwitch performance, networking throughput and the power and cooling capacity of your data center. Don’t forget KV cache pressure during long context inference.
HGX combines GPUs with NVLink, NVIDIA networking and optimized AI and HPC software. The best choice depends on whether you’re compute bound, memory bound or communication bound. You can confirm this by profiling achieved bandwidth and time in NCCL collectives.
This guide outlines compute and bandwidth trade-offs and explains when extra HBM is better than more compute.
TL; DR: Pick Your HGX Platform in 30 Seconds
The table below will help you decide quickly, then validate the decision with measurable bottlenecks.
| Your Situation | GPU to Use | Why it usually wins |
|---|---|---|
| You hit OOM during training or decode latency spikes when context grows. | HGX B300 | More HBM per GPU keeps KV cache, activations and shards resident, which reduces eviction and recompute. |
| You serve long-context workloads with high concurrency and strict tail latency. | HGX B300 | More HBM capacity raises concurrency and max context before KV eviction becomes the dominant latency driver. |
| Your model fits comfortably today and you are optimizing balanced fleet utilization. | HGX B200 | Similar peak bandwidth and NVLink scale-up means realized gains often depend more on kernels, collectives and scheduling. |
| TP all-reduce and all-gather dominate step time at scale. | Either, then fix topology | NVLink bandwidth is similar, therefore topology-aware placement and NCCL tuning usually beat a hardware-only upgrade. |
| You are planning a 2026 refresh and want a clean decision record. | Profile first | A short roofline plus NCCL trace tells you whether you are compute-bound, bandwidth-bound or comm-bound. |
Note: The “similar NVLink” claim is directly reflected in NVIDIA’s HGX specs table which lists the same NVLink GPU to GPU bandwidth and total NVLink bandwidth for HGX B300 and HGX B200.

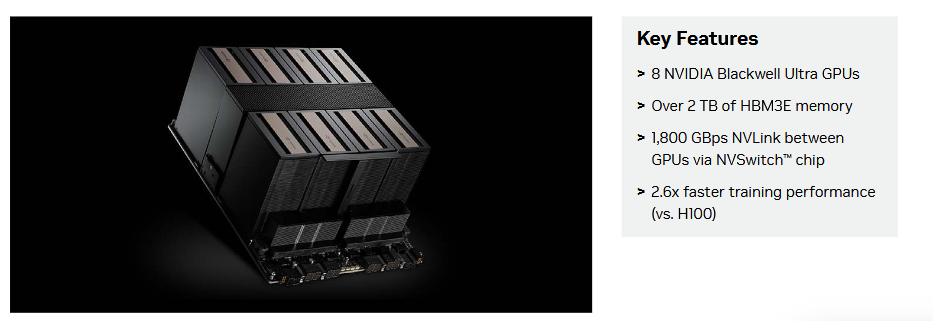

NVIDIA HGX B300 Platform
The NVIDIA HGX B300 is NVIDIA’s latest HGX baseboard platform, designed for the next generation of AI and high-performance computing workloads.
Image Source: NVIDIA
Built on Blackwell Ultra, it is most valuable when memory capacity and attention heavy inference are the constraints, not when you just want a small peak FLOPS bump.
Image Source: NVIDIA
Why choose HGX B300?
It is designed for deployments where memory capacity and sustained bandwidth are the limiting factors.
- NVIDIA’s HGX specs and DGX B300 datasheets list 2.3 TB total HBM3e memory for an 8-GPU HGX B300 node.
- NVIDIA’s HGX AI Factory reference architecture lists 288GB HBM3e per GPU and 2.30TB per node for HGX B300.
Supports long-context LLM serving, very large model training, and bandwidth-heavy inference, because more HBM reduces KV eviction, offload, and excessive sharding.
Fits between balanced enterprise clusters and rack-scale architectures, giving you a practical step-up when you need more memory headroom without moving to an entirely different platform class.

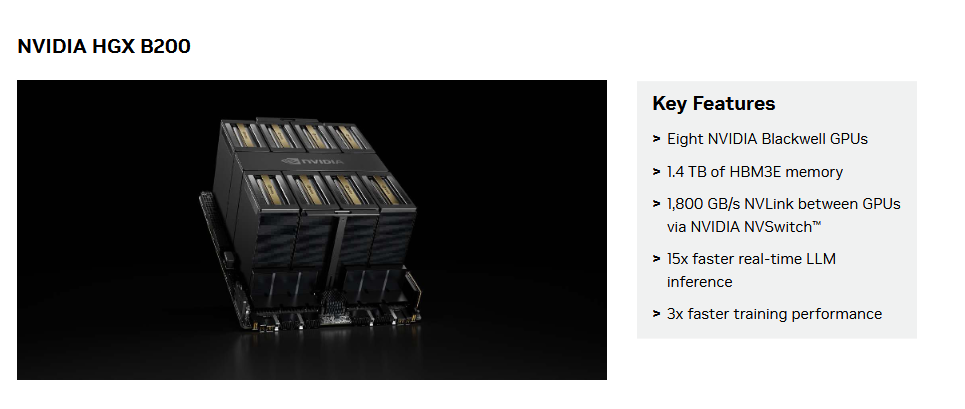

NVIDIA HGX B200 Server
The NVIDIA HGX B200 is an 8 GPU HGX baseboard platform using Blackwell B200 GPUs, built for demanding AI, HPC and analytics workloads at scale.
Image Source: NVIDIA
Each GPU includes 180 GB HBM3e, and NVIDIA lists 14.4 TB/s total NVLink bandwidth, which supports fast scale-up collectives inside the node.
It is a strong fit when your working set fits in HBM, because then kernel efficiency, batching and topology drive more value than additional memory capacity.
Why choose HGX B200?
It is often the most pragmatic option for enterprise AI because it balances performance, capacity and operational cost.
Image Source: NVIDIA
With 1.44 TB of HBM3e across an 8-GPU baseboard and NVLink or NVSwitch scale-up interconnects, you can run training and inference efficiently without overextending facility limits.
- You typically face fewer power density and cooling constraints than with rack-scale configurations, which simplifies deployment planning.
- You can use it for LLM training, fine-tuning and inference when your models fit comfortably in GPU memory and KV cache growth stays predictable.
- You should consider it when you want a standardized platform for your first large-scale AI rollout, because it supports repeatable operations and capacity planning.
What is the Difference Between HGX B300 vs. HGX B200?
Below is the side-by-side comparison table that summarizes what changes between B300 and B200, focusing on memory capacity, attention performance and interconnect bandwidth.
| Factors | HGX B300 (Blackwell Ultra) | HGX B200 (Blackwell) |
|---|---|---|
| Form Factor | 8× NVIDIA Blackwell Ultra SXM | 8× NVIDIA Blackwell SXM |
| FP4 Tensor Core | 144 PFLOPS | 108 PFLOPS | 144 PFLOPS | 72 PFLOPS |
| FP8/FP6 Tensor Core | 72 PFLOPS | 72 PFLOPS |
| INT8 Tensor Core | 2 POPS | 72 POPS |
| FP16/BF16 Tensor Core | 36 PFLOPS | 36 PFLOPS |
| TF32 Tensor Core | 18 PFLOPS | 18 PFLOPS |
| FP32 | 600 TFLOPS | 600 TFLOPS |
| FP64/FP64 Tensor Core | 10 TFLOPS | 296 TFLOPS |
| Total Memory | 2.3 TB | 1.4 TB |
| NVIDIA NVLink | Fifth generation | Fifth generation |
| NVIDIA NVLink Switch | NVLink 5 Switch | NVLink 5 Switch |
| NVLink GPU-to-GPU Bandwidth | 1.8 TB/s | 1.8 TB/s |
| Total NVLink Bandwidth | 14.4 TB/s | 14.4 TB/s |
| Networking Bandwidth | 1.6 TB/s | 0.8 TB/s |
| Attention Performance | 2x | 1x |
Note: NVIDIA notes these HGX specs as dense and sparse derived figures and uses POPS for INT8 in the HGX table. Other NVIDIA documents may present INT8 differently. For most LLM training and inference comparisons, FP4 and FP8 matter more than the INT8 line item
Key Takeaways:
- B300 prioritizes scale and context with 2.1 TB HBM and 2× attention performance, which helps long-context inference and larger micro-batches.
- B200 remains stronger for FP64-heavy work at 296 TFLOPS, making it better for classic HPC or FP64-dependent pipelines.
- Intra-node scale-up is similar since both use NVLink 5 with 1.8 TB/s GPU-to-GPU and 14.4 TB/s total bandwidth.
- B300 improves scale-out headroom with 1.6 TB/s networking bandwidth, which can reduce comm bottlenecks in multi-node training.
Validate Your Bottleneck in 20 Minutes Before You Pick Hardware
Use this quick checklist to confirm your real bottleneck, then choose HGX B300 or B200 based on measured evidence.
Step 1: Classify the run as compute-bound, memory-bound or communication-bound
- Compute bound signals: High GPU utilization, stable step time, low memory stall indicators
- Memory-bound signals: High achieved HBM bandwidth, lower SM utilization, decode slowing sharply as context grows
- Communication-bound signals: High % time in NCCL, scaling efficiency drops as you add nodes, collective ops dominate
Step 2: Capture three measurements
- Achieved HBM bandwidth and kernel hotspots
- Time spent in NCCL collectives such as all reduce and all gather
- Scaling efficiency from 1 node to N nodes at the same global batch
Step 3: Decide what would fix your limit
- If you are capacity limited, more HBM usually wins
- If you are comm limited, topology and networking usually win
- If you are kernel limited, software stack and kernel choices win
Plan Your HGX Upgrade with AceCloud
HGX B300 vs HGX B200 comes down to limits you first: HBM capacity, networking bandwidth or FP64 performance. If OOM events, KV cache growth or long-context latency spikes are slowing you down, B300’s higher memory and stronger attention throughput can unlock higher concurrency and steadier tokens/sec. If your workloads depend on FP64-heavy HPC or your models already fit cleanly in HBM, B200 can be the more cost-efficient baseline.
AceCloud helps you turn these specs into a deployable plan. You can profile your training step, quantify time in NCCL collectives and map results to the right HGX tier.
Talk to AceCloud to size your cluster, validate topology and choose the platform that meets your 2026 roadmap.
Frequently Asked Questions
HGX B300 increases memory capacity per GPU and per node, while keeping similar HBM bandwidth and similar NVLink scale-up bandwidth.
B300 can be faster when your run is capacity-limited or attention-heavy, because it improves fit and raises effective utilization.
Extra HBM capacity wins when OOM, KV eviction or aggressive sharding causes stalls, because keeping data resident avoids overhead.
Peak HBM bandwidth is typically listed as similar, therefore realized bandwidth and kernel efficiency usually matter more than the headline number.
NVLink and NVSwitch reduce collective time for all-reduce and all-gather, however poor placement can still push traffic onto slower fabrics.
B300 is usually better when KV cache drives memory pressure, because more HBM raises max context and concurrency before eviction.
B200 can favor workloads needing stronger FP64 or broader INT8 behavior, especially when your model fits and is not memory-bound.
